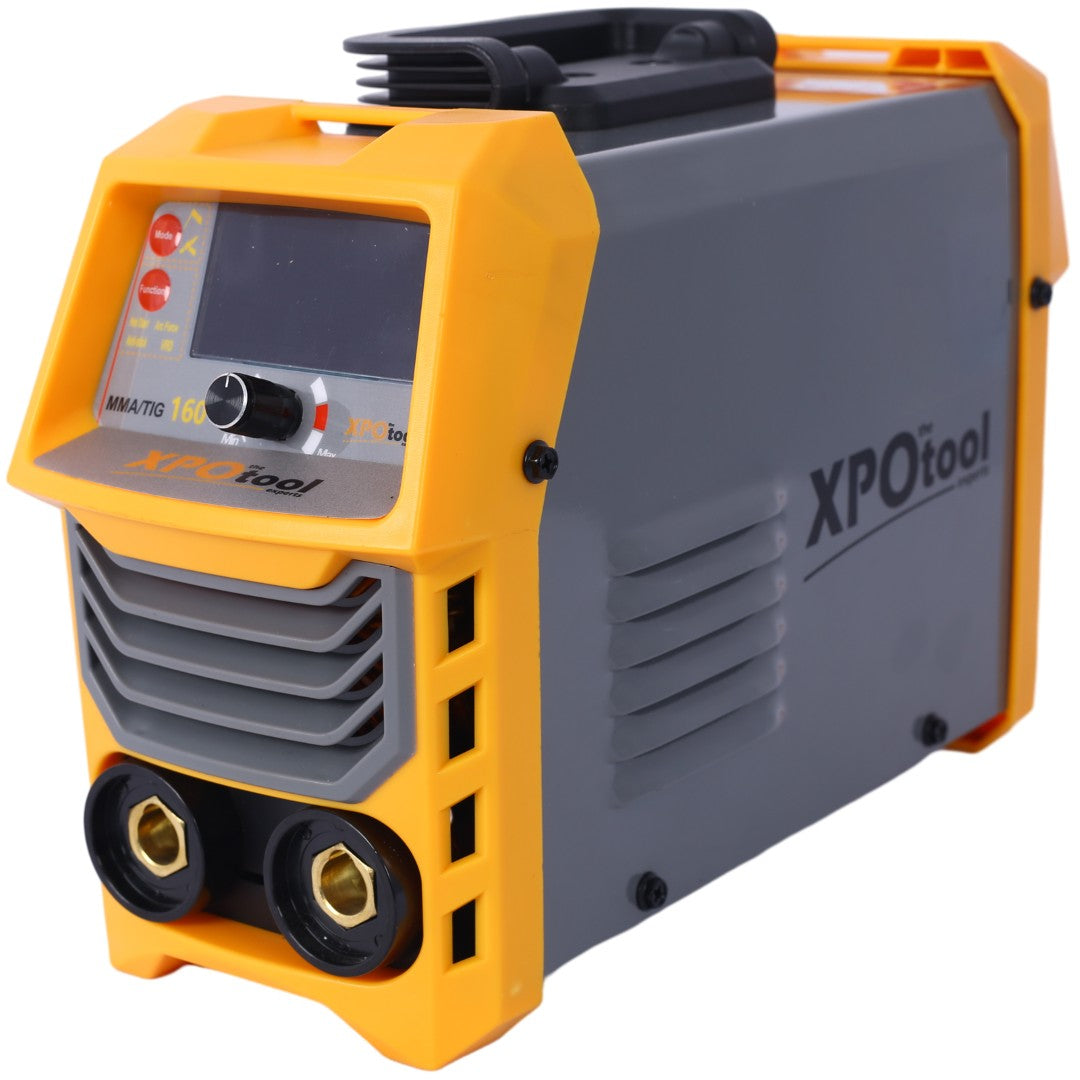

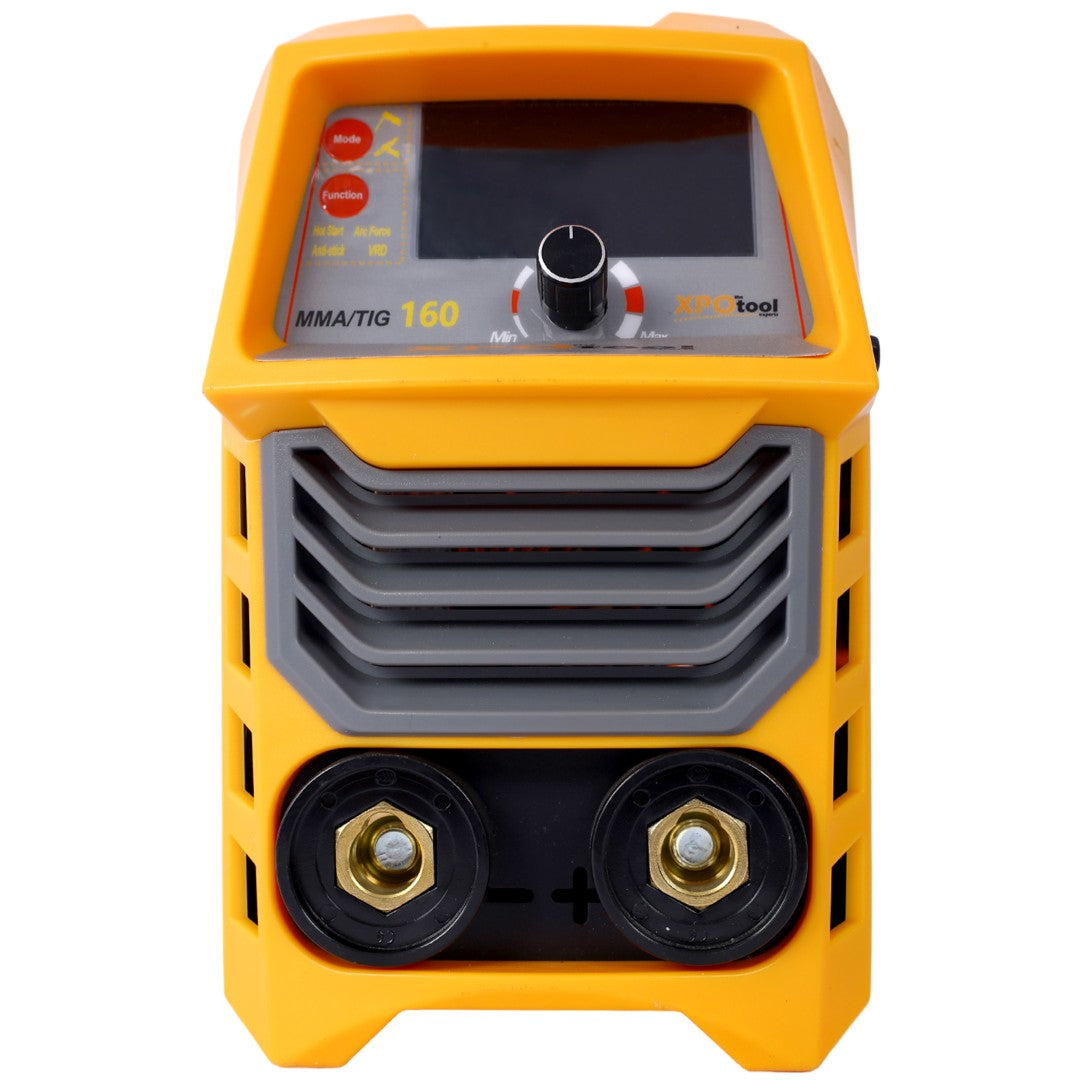

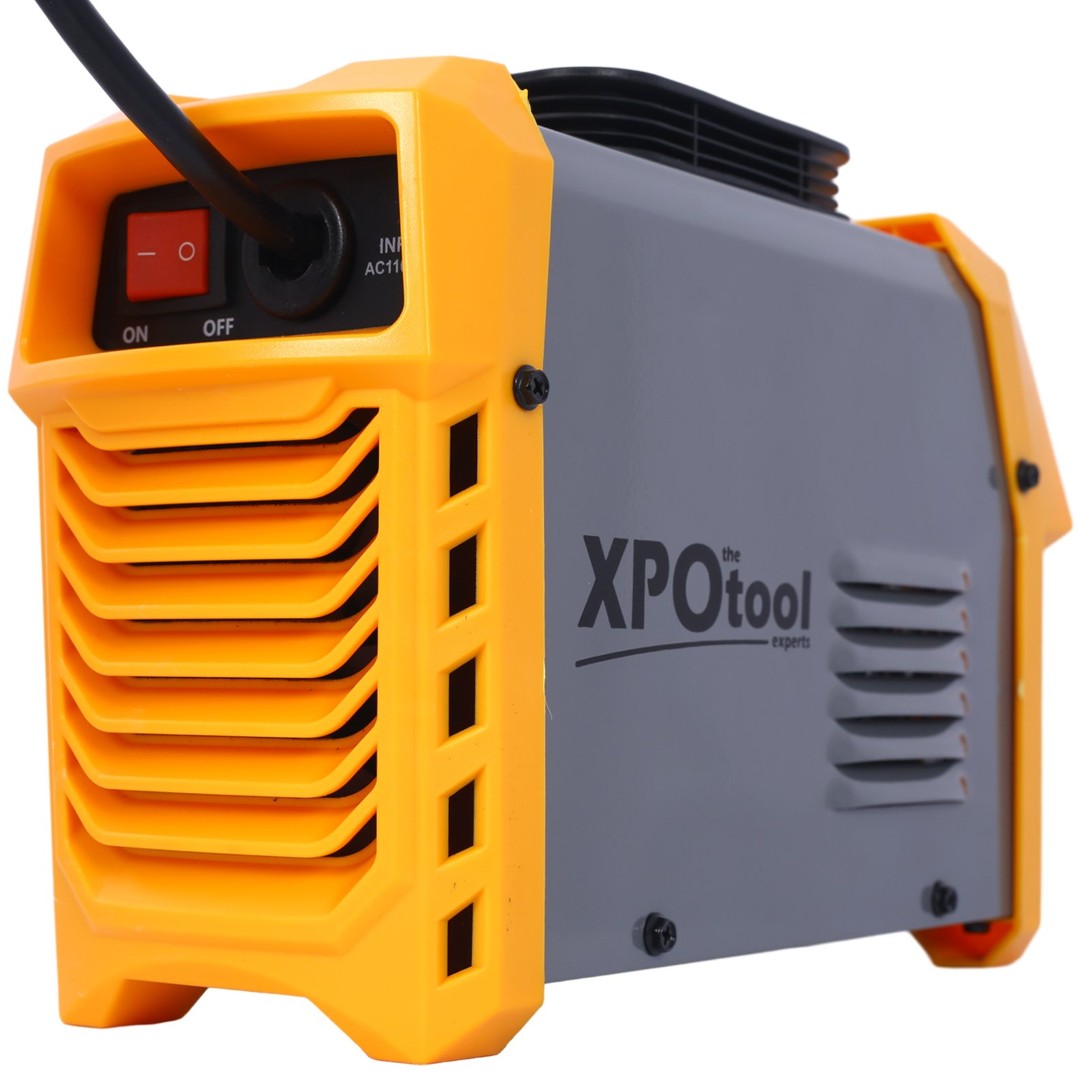

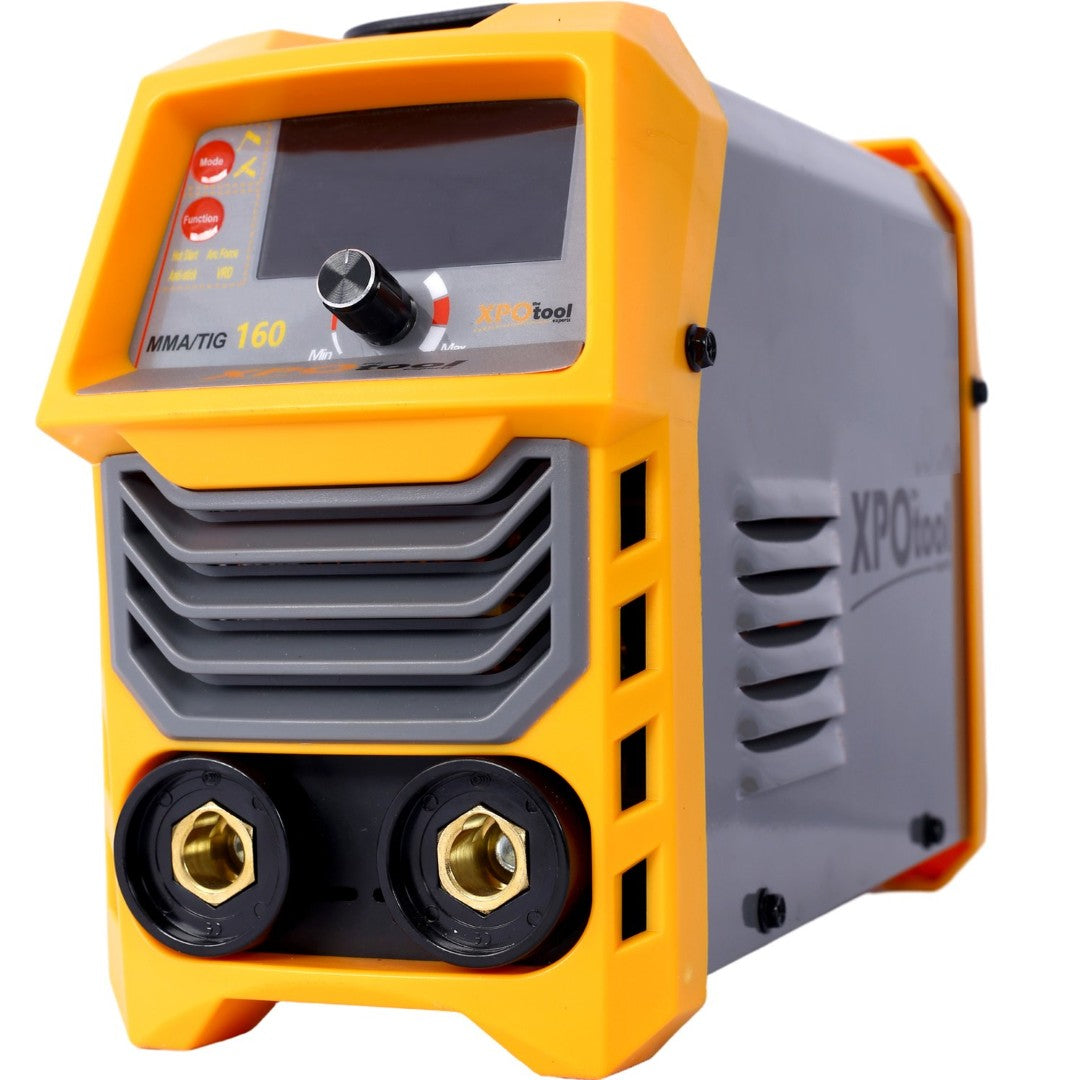

110V/220V Dual Voltage Igbt Inverter Stick Welder With Mma Lift Tig Arc Functions

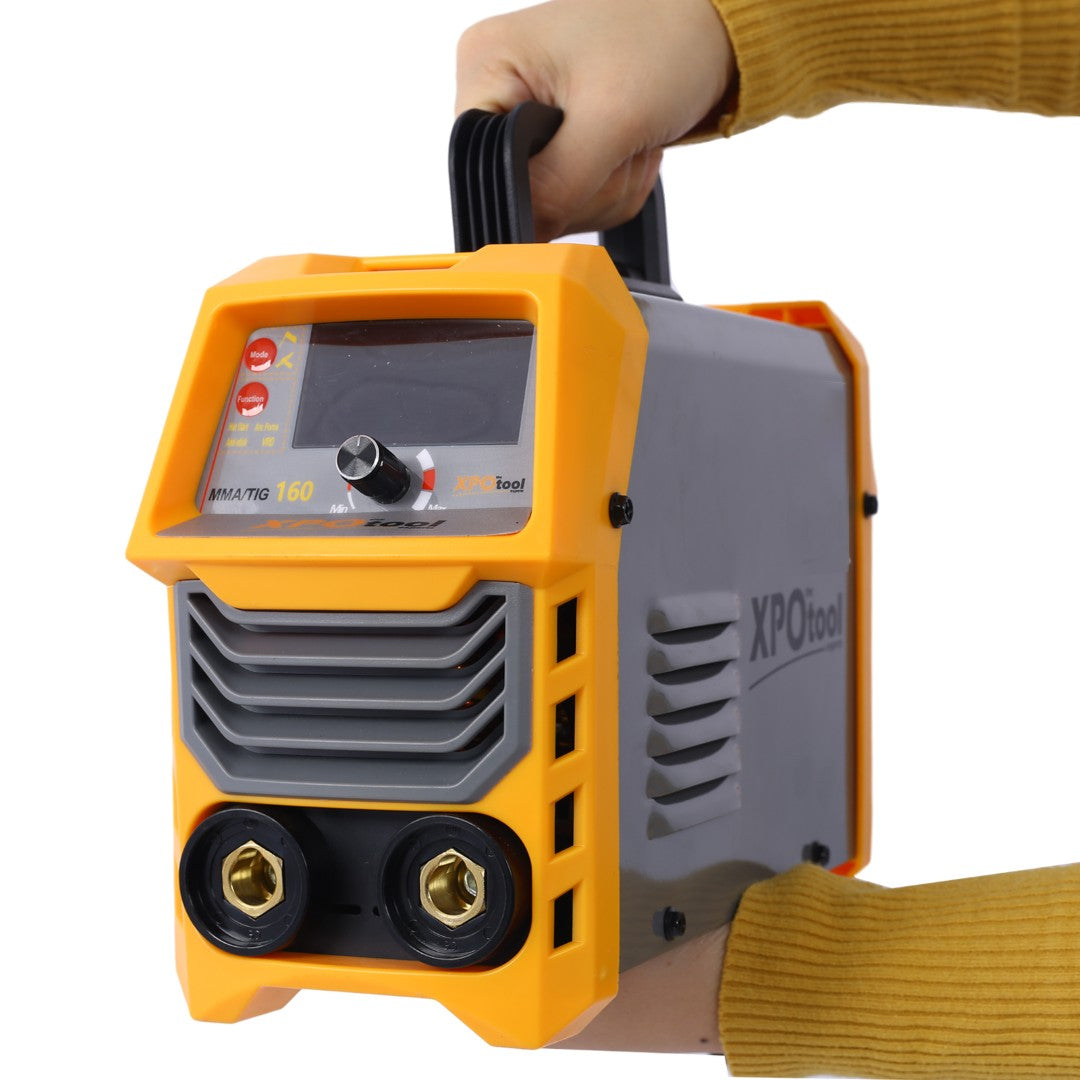

Built around IGBT inverter technology, this dual-voltage stick welder handles both MMA and Lift TIG processes from a single compact unit that runs on standard 110V household current or 220V shop power without manual switching. The inverter design keeps the unit light enough to carry to a job site while delivering the arc stability and penetration depth that experienced welders expect — and the automatic current recommendation feature makes it accessible to beginners as well.

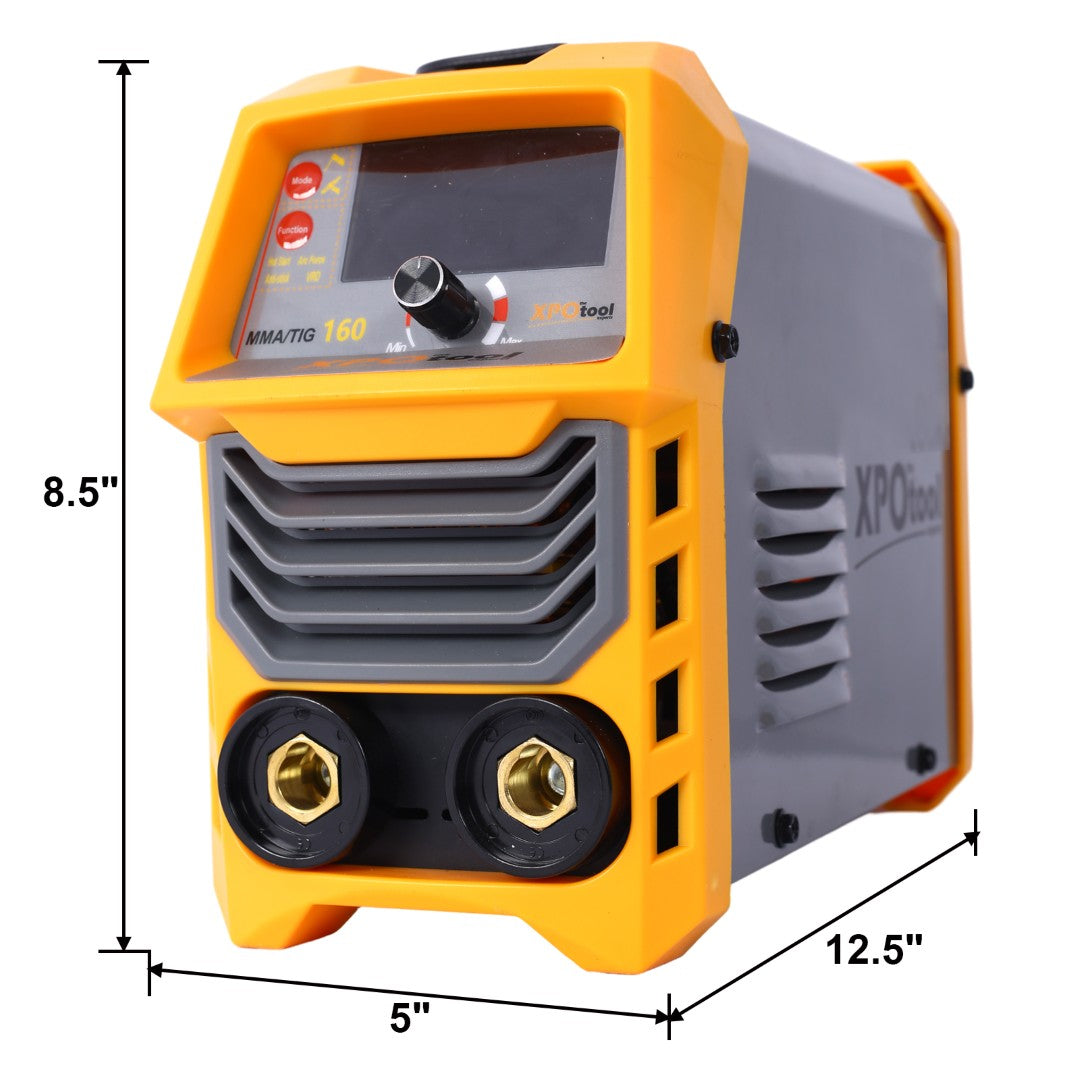

• Dimensions: 12.5 L x 5 W x 8.5 H inches

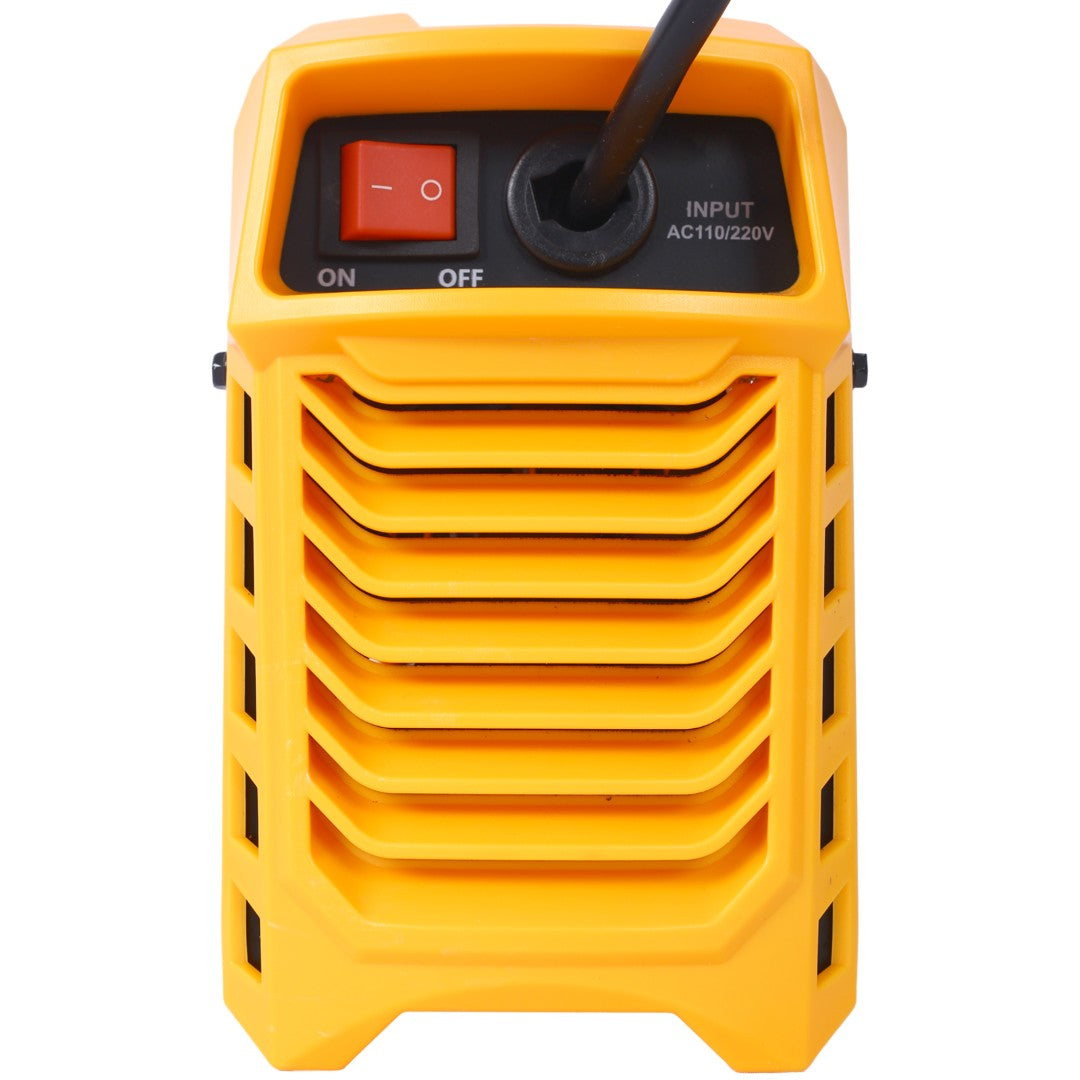

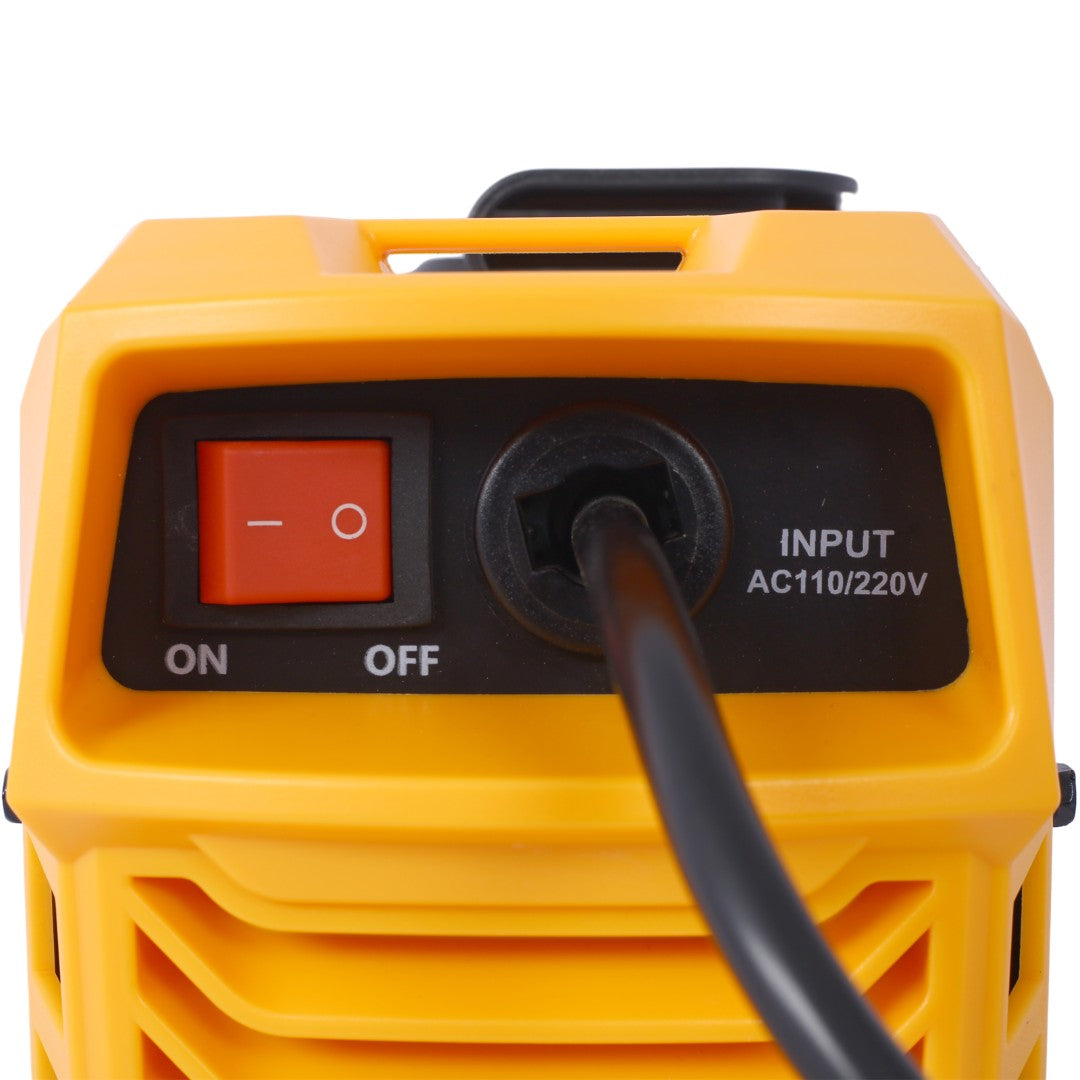

• Dual-voltage IGBT inverter design accepts 110V or 220V input automatically, with a 50/60 Hz frequency range and 0.9 power factor for efficient energy use
• Output current range of 10–160A for Lift TIG and 10–140A for MMA stick welding, with a rated duty cycle of 60% at full load
• Compatible with E6011, E6013, E6014, and E7018 welding rods up to 5/32 inch (4.0mm) diameter, suitable for stainless steel, mild steel, and aluminum
• Built-in Hot-Start, Anti-Stick, and Arc-Force functions provide easier arc striking, cleaner electrode release, and smoother bead formation with reduced spatter
• Four onboard protection systems cover overheating, overload, overvoltage, and overcurrent conditions, with an IP21S protection rating

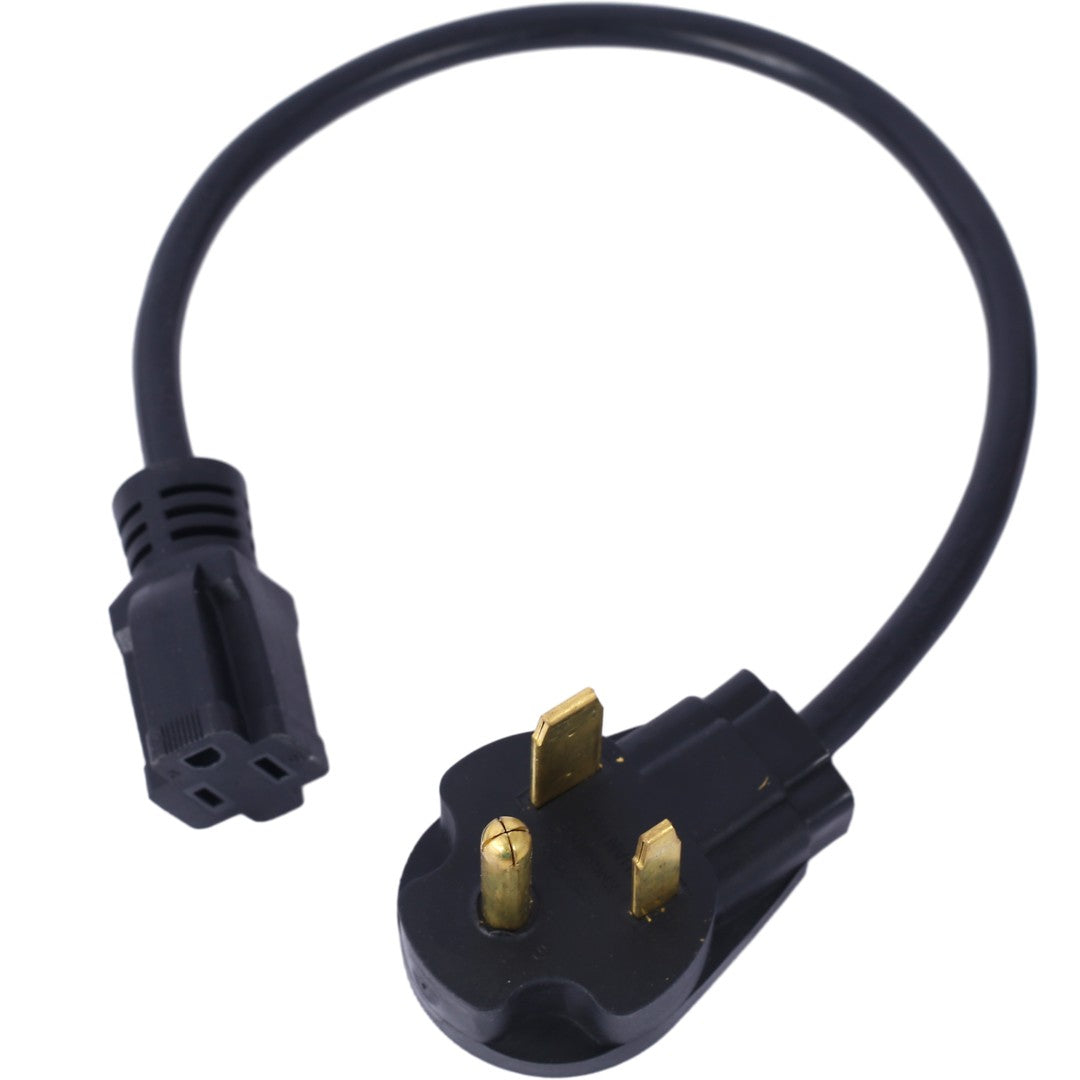

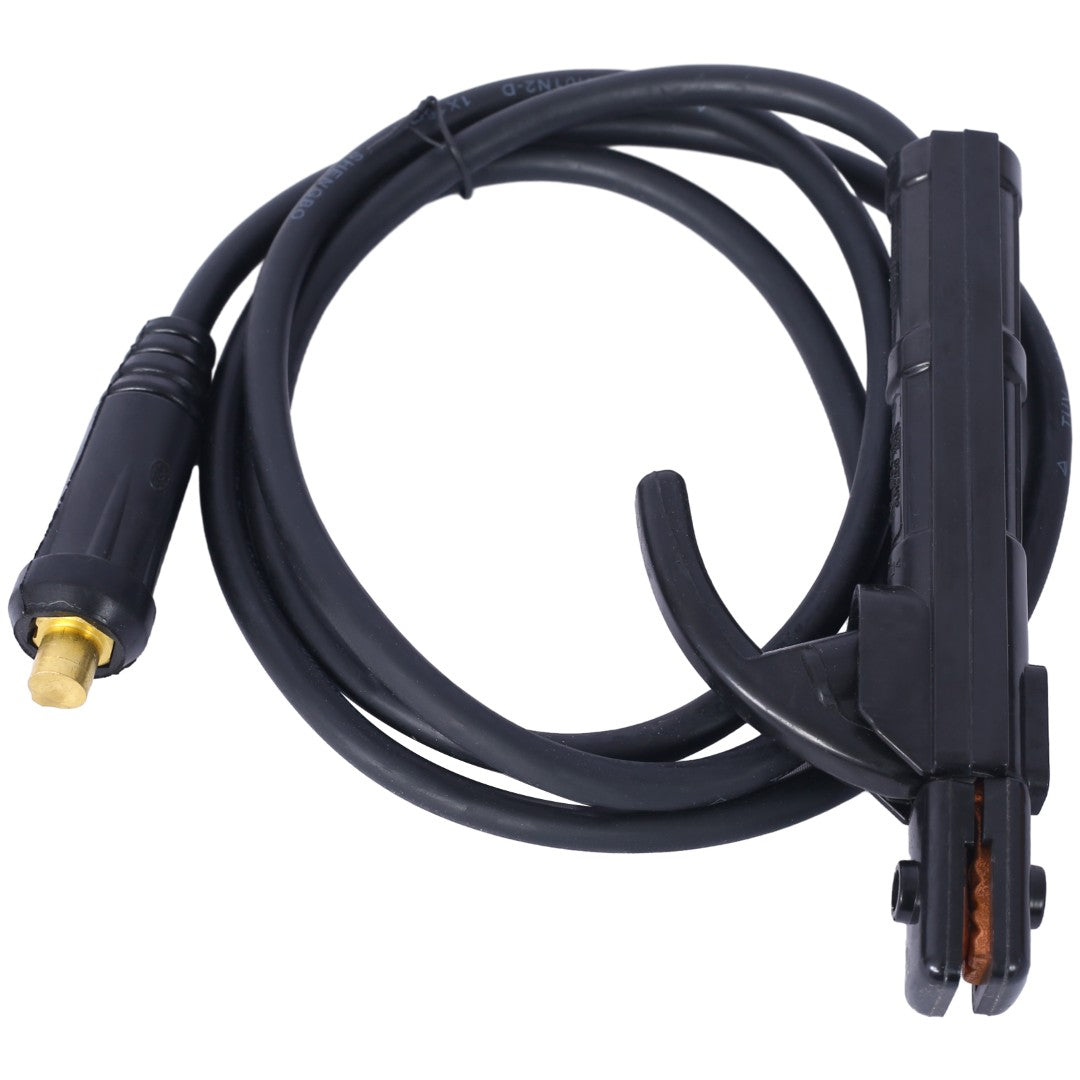

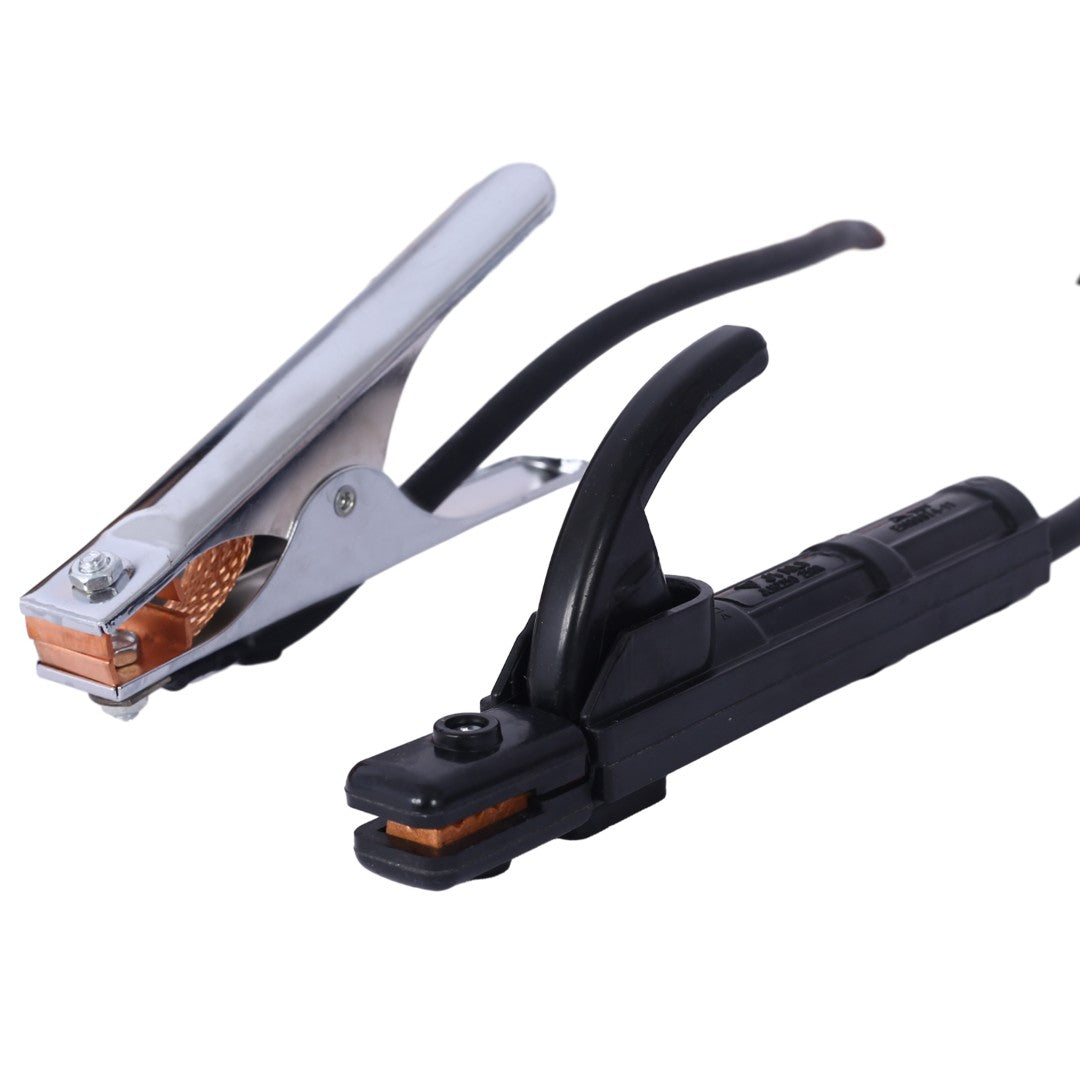

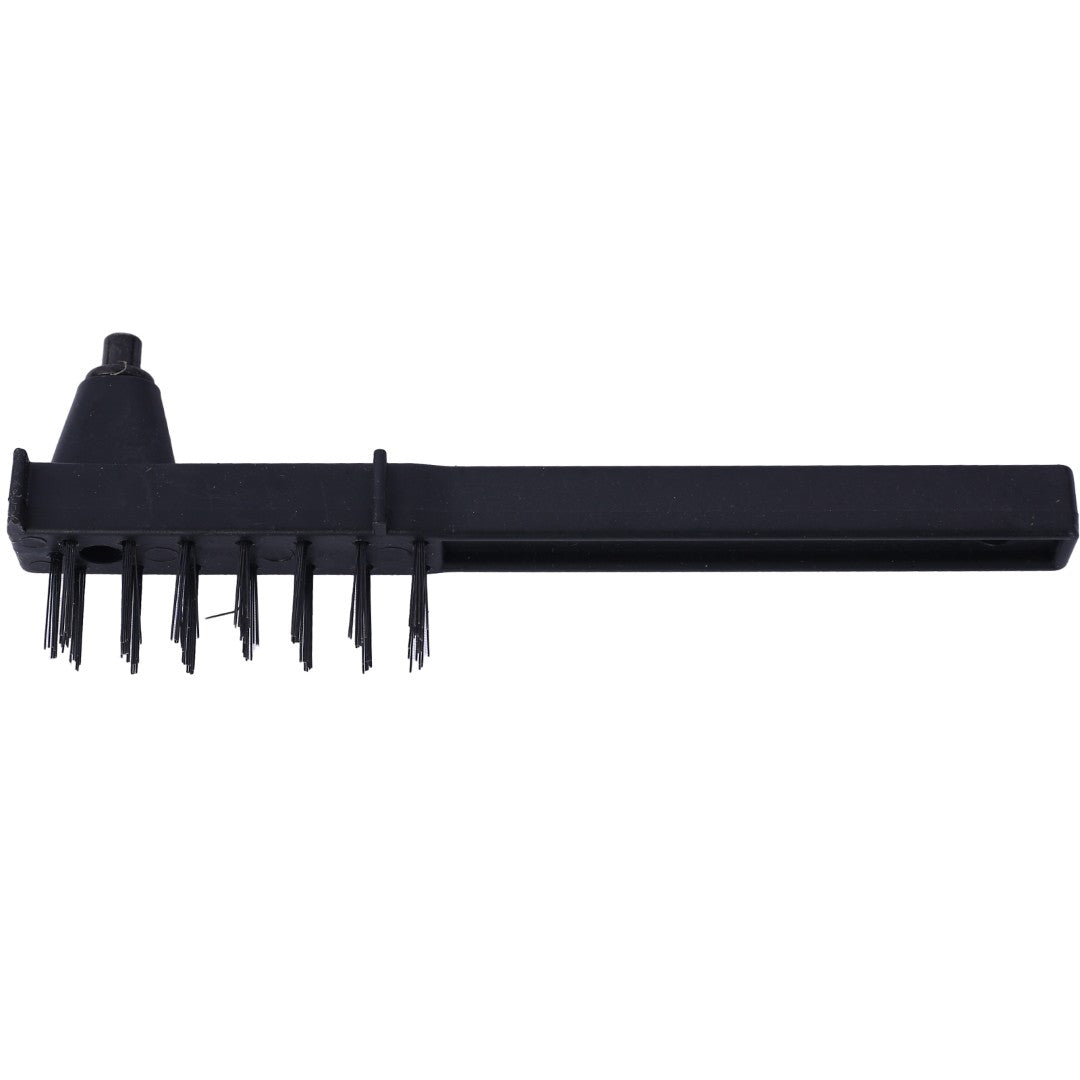

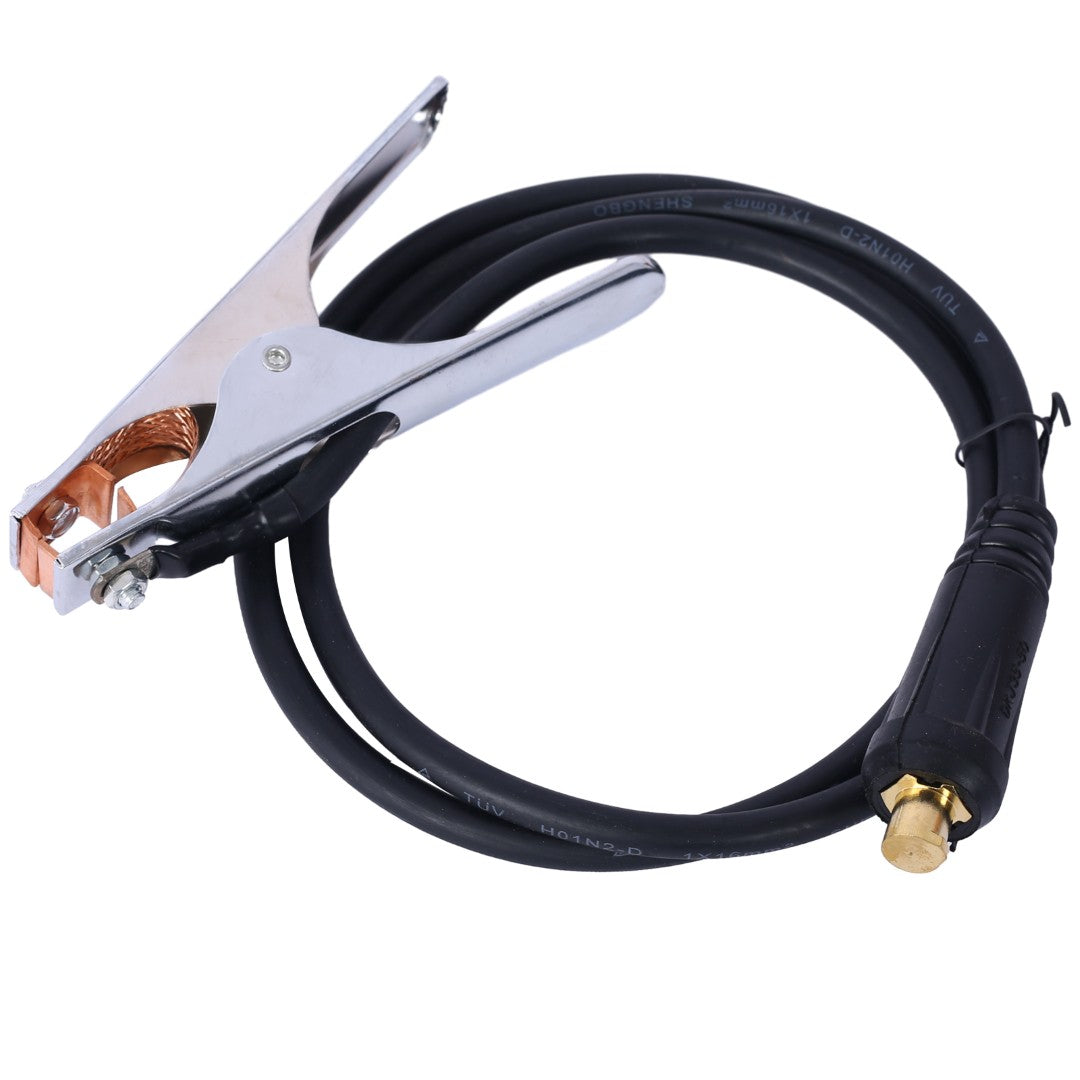

• Package includes a 300A electrode holder with 6-foot cable, 300A ground clamp with 5-foot cable, 110V-to-220V power adapter, cleaning brush, and user manual

Features

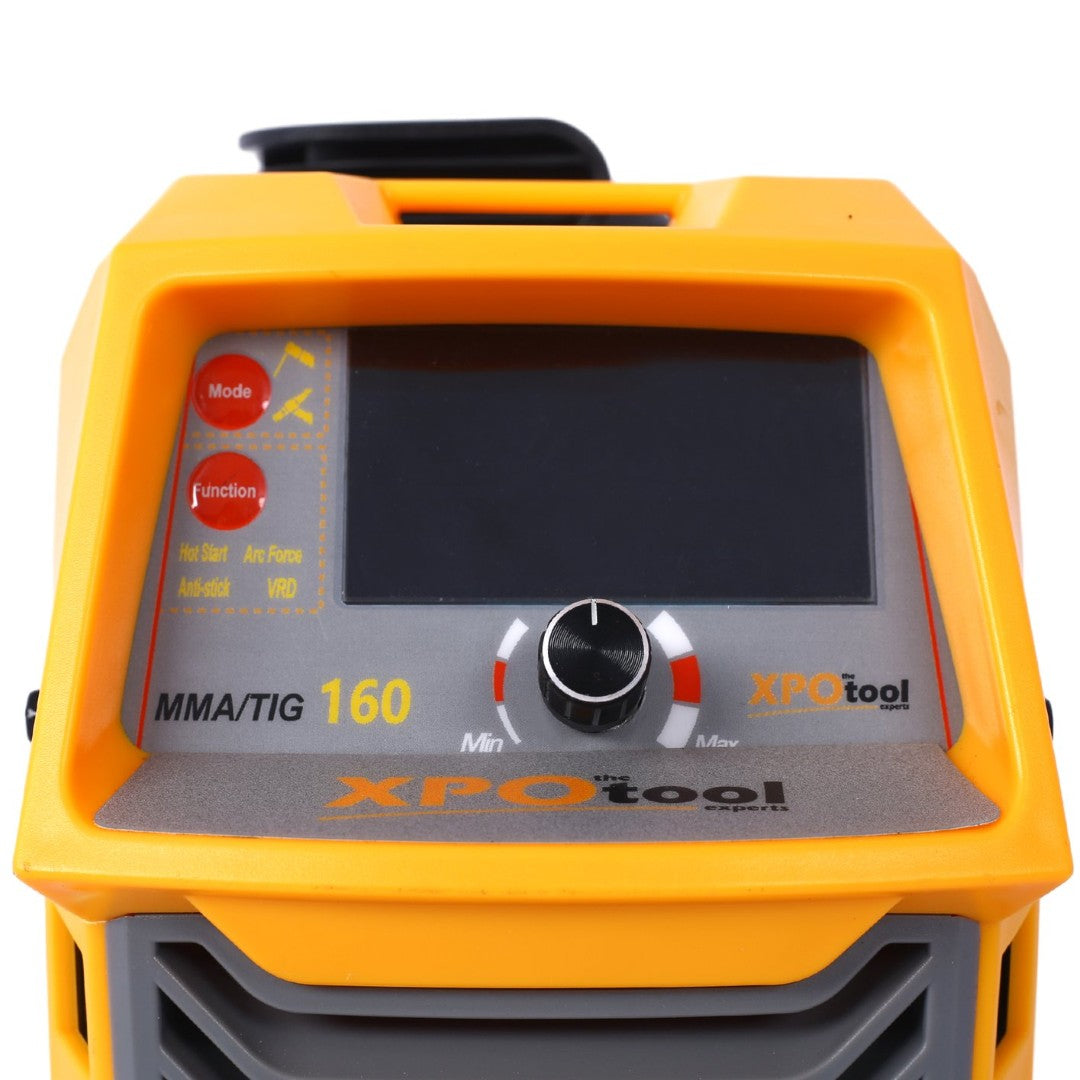

• Convenient Operation: This welding machine can be plugged into 110V / 220V dual voltage automatically, and allows users to select the diameter of welding electrodes. The recommended welding current will be automatically switched into, and users can also adjust the welding current according to their welding habits. This machine is so easy to use that it can be used by novice or master welders
• Wide Application: The 2 in 1 MMA/Lift TIG welder is ideal for high TIG torch with stick arc welding, and is suitable for welding stainless steel, mild steel, aluminum, and other metal materials. With up to 160 more amps, it provides ideal performance for most E6011, E6013, E6014, E7018, and welding rods below 5/32 in.(4.0mm). It's very suitable for outdoor maintenance, garage, farm, craft, and home DIY.
• Advanced Technology: Featuring advanced IGBT inverter technology and advanced PWM control technology, this machine provides DC output and energy-saving benefits. The high welding inverter frequency significantly improves the performance of the machine, making the welding process easier with less splash, stable current, and good shape.
• Reliable and Safe: This welding machine is built in with Hot-start technology for easier arc striking, Anti-stick to easily remove the electrode from the workpiece, and Arc-force to provide smoother welding and deeper penetration. It is also installed with Over-Heat Protection, Over-Load Protection, Over-Voltage Protection, and Over-Current Protection functions, ensuring a safer and more assured welding experience.

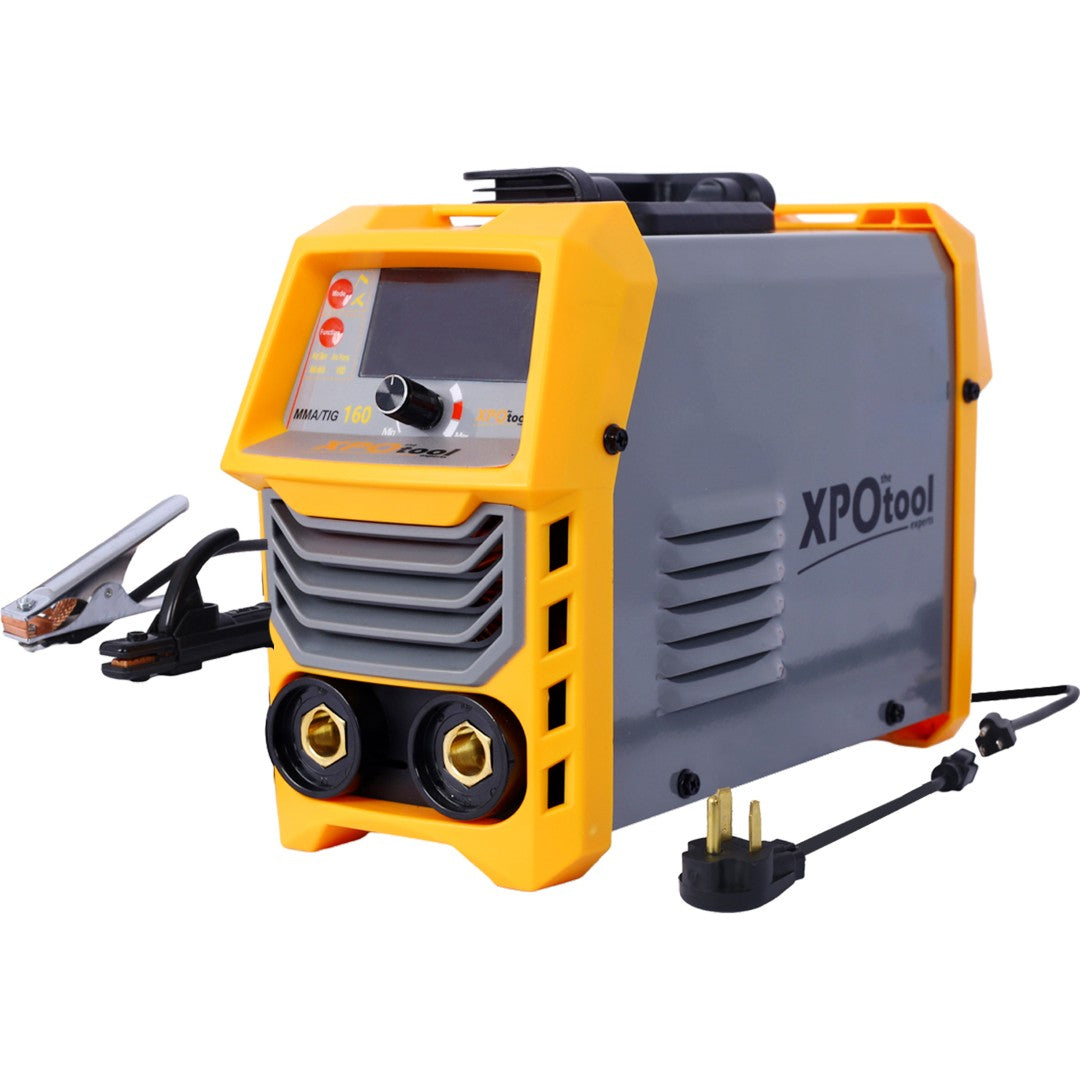

• Complete Accessories: All accessories included with the package are made of high-quality materials. The package includes the MMA-160 Welding Machine, a 300A Electrode Holder, a 300A Work Clamp Assembly, a 110V & 220V power adapter, a brush for cleaning welding spatter, and an Owner's Manual.

Additional Features

• Assembled Length(inch): 12.5
• Assembled Width(inch): 5
• Assembled Height(inch): 8.5
• Product weight(pound): 10
• Main Color: Yellow+Grey
• Main Material: ABS+Steel(Q235)
• Product Dimensions: 12.5 L x 5 W x 8.5 H
