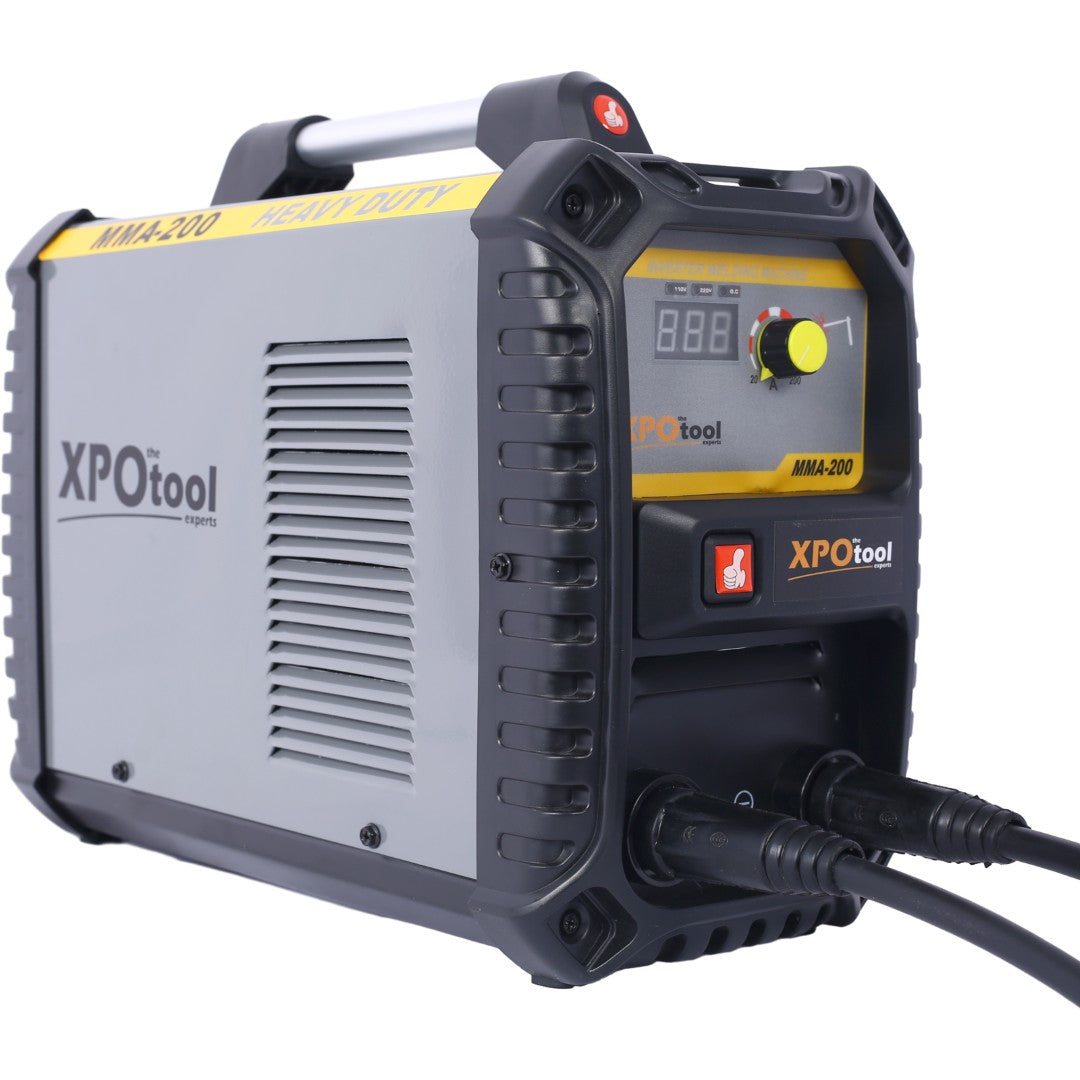

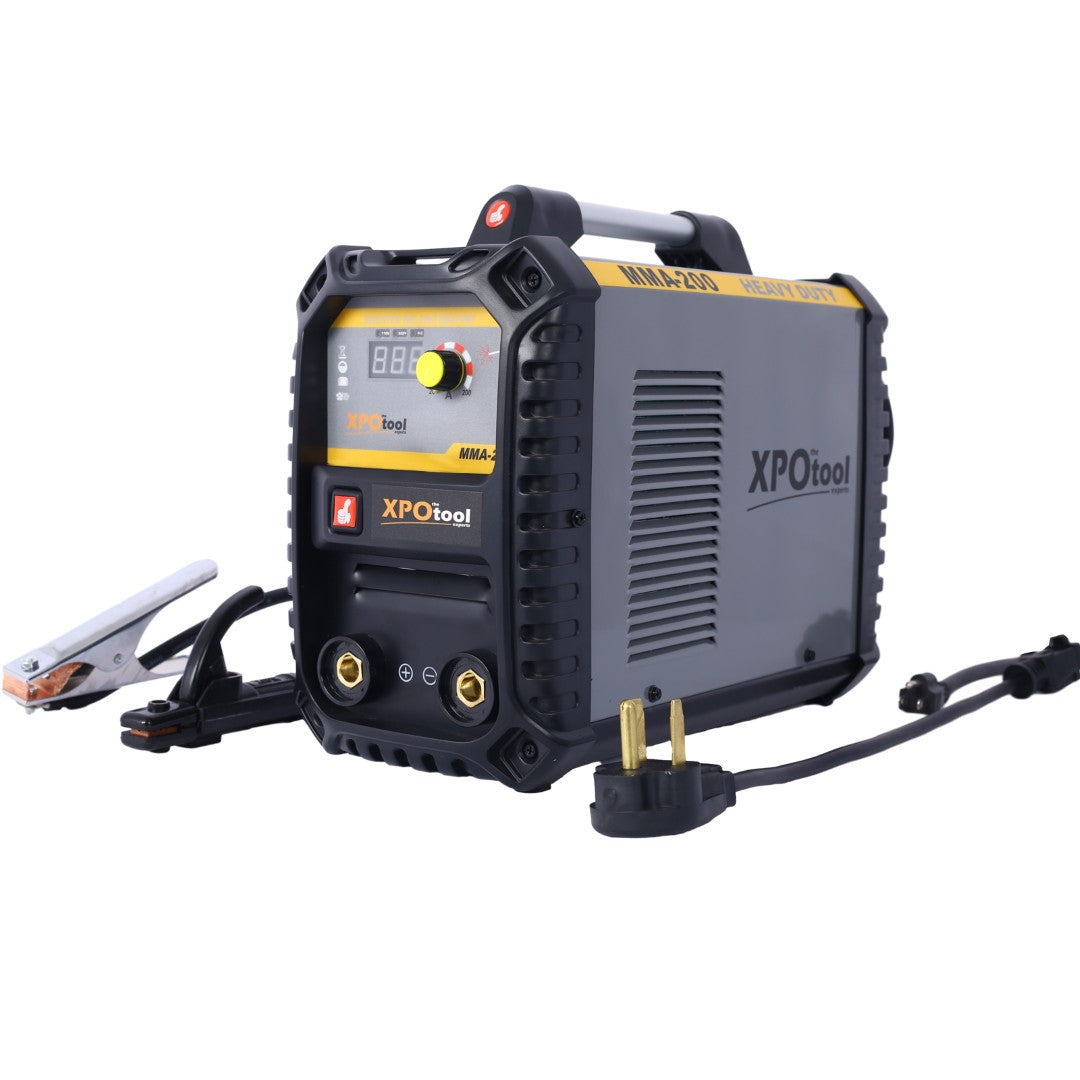

110/220V Dual Voltage Igbt Inverter Welder 200A Stick Arc With Digital Lcd Panel

Compact enough to carry to a jobsite but capable enough to run 7018 electrodes without breaking stride, this dual-voltage IGBT inverter welder handles both 110V and 220V input automatically — no manual switching required. The digital LCD panel gives real-time feedback on current output, while hot start and anti-stick functions reduce the frustration that typically slows down less experienced operators.

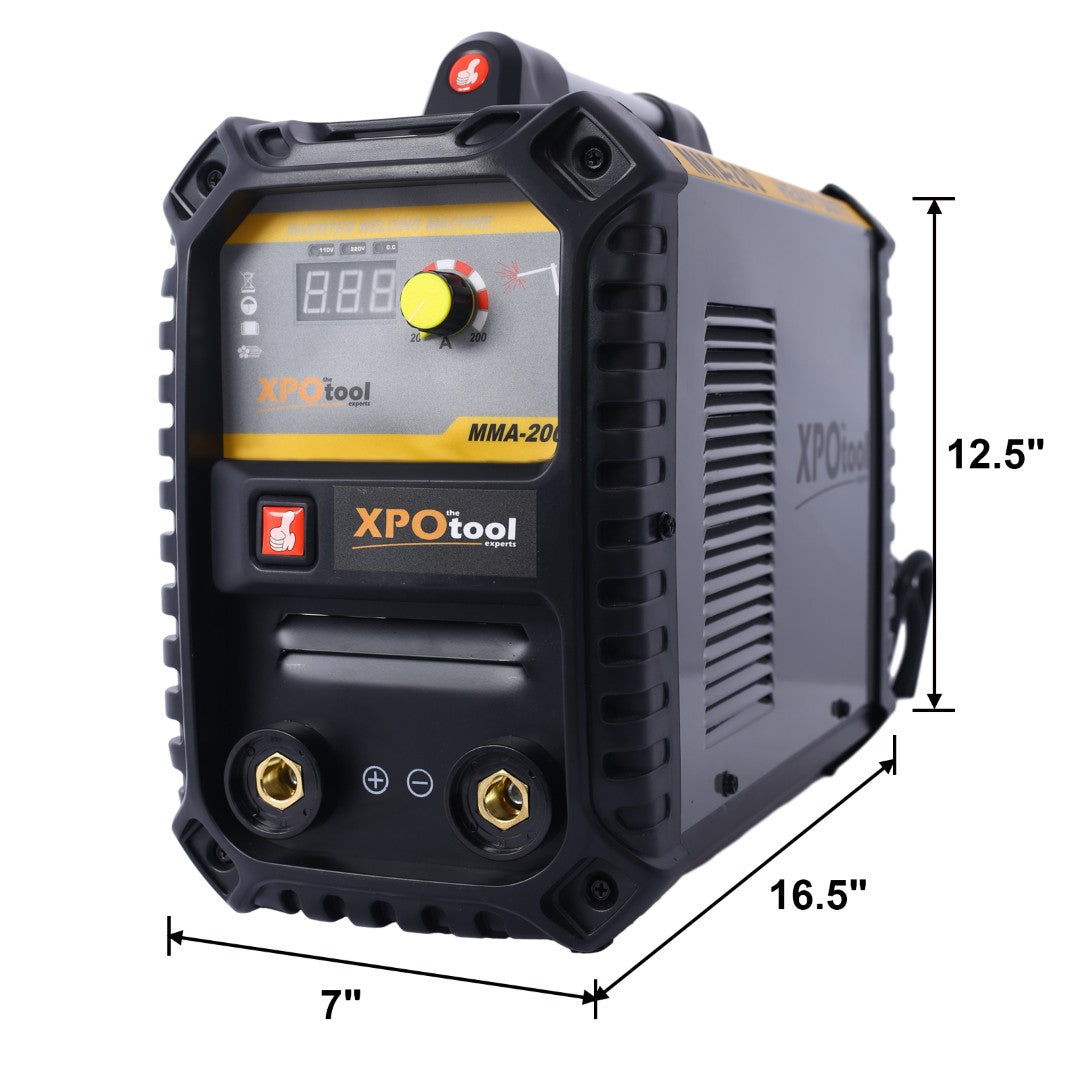

• Dimensions: 16.5 L x 7 W x 12.5 inches H
• Dual-voltage IGBT inverter accepts 90V–260V wide input range with automatic 110V/220V conversion, accommodating variable power sources and voltage fluctuations
• Stepless current adjustment from 20A to 200A with a maximum output of 200A and a 45% duty cycle at 200A in 40°C ambient conditions
• Compatible with E6011, E6013, E6014, and E7018 electrodes and welding wire diameters from 2.0mm to 5.0mm (up to 5/32 inch rod)

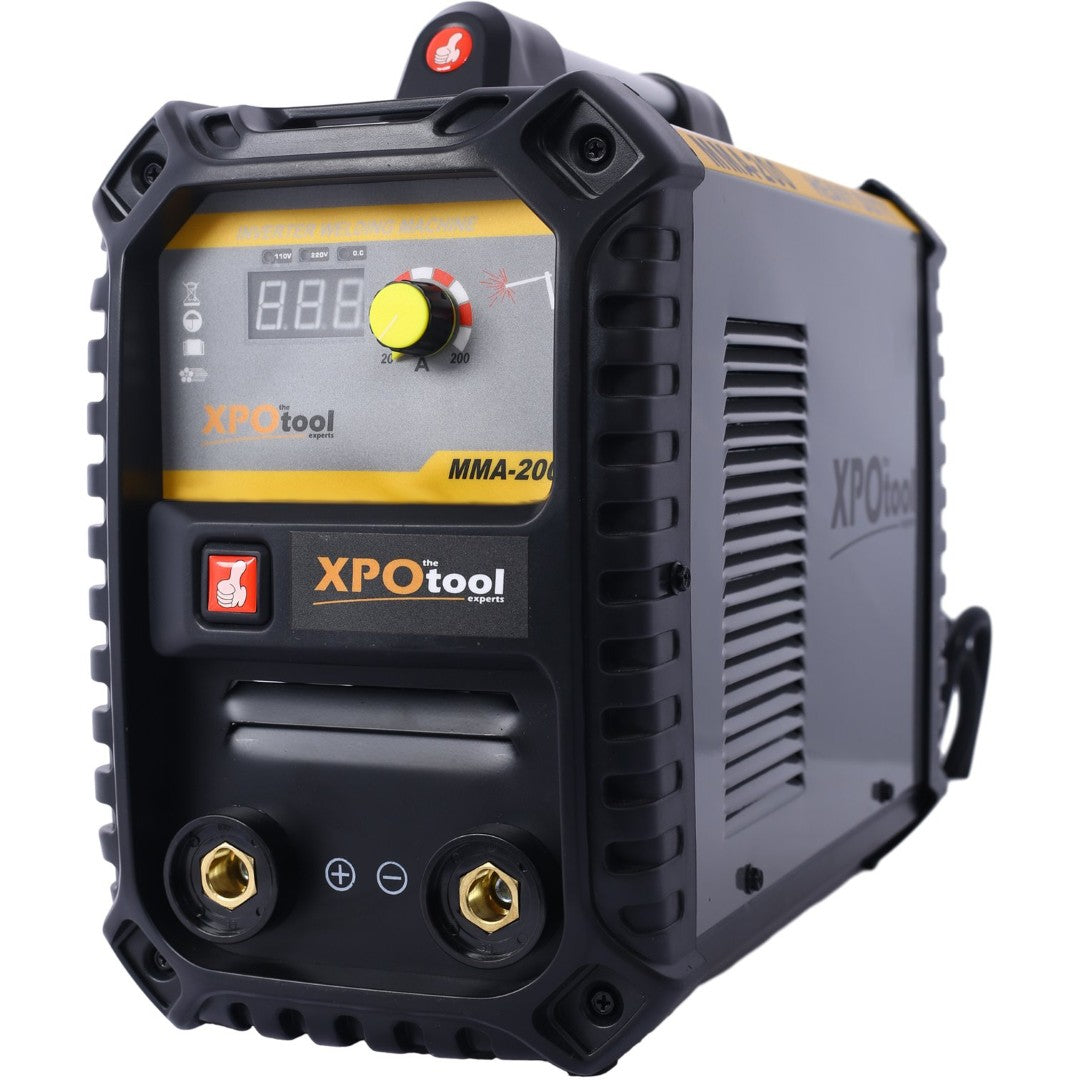

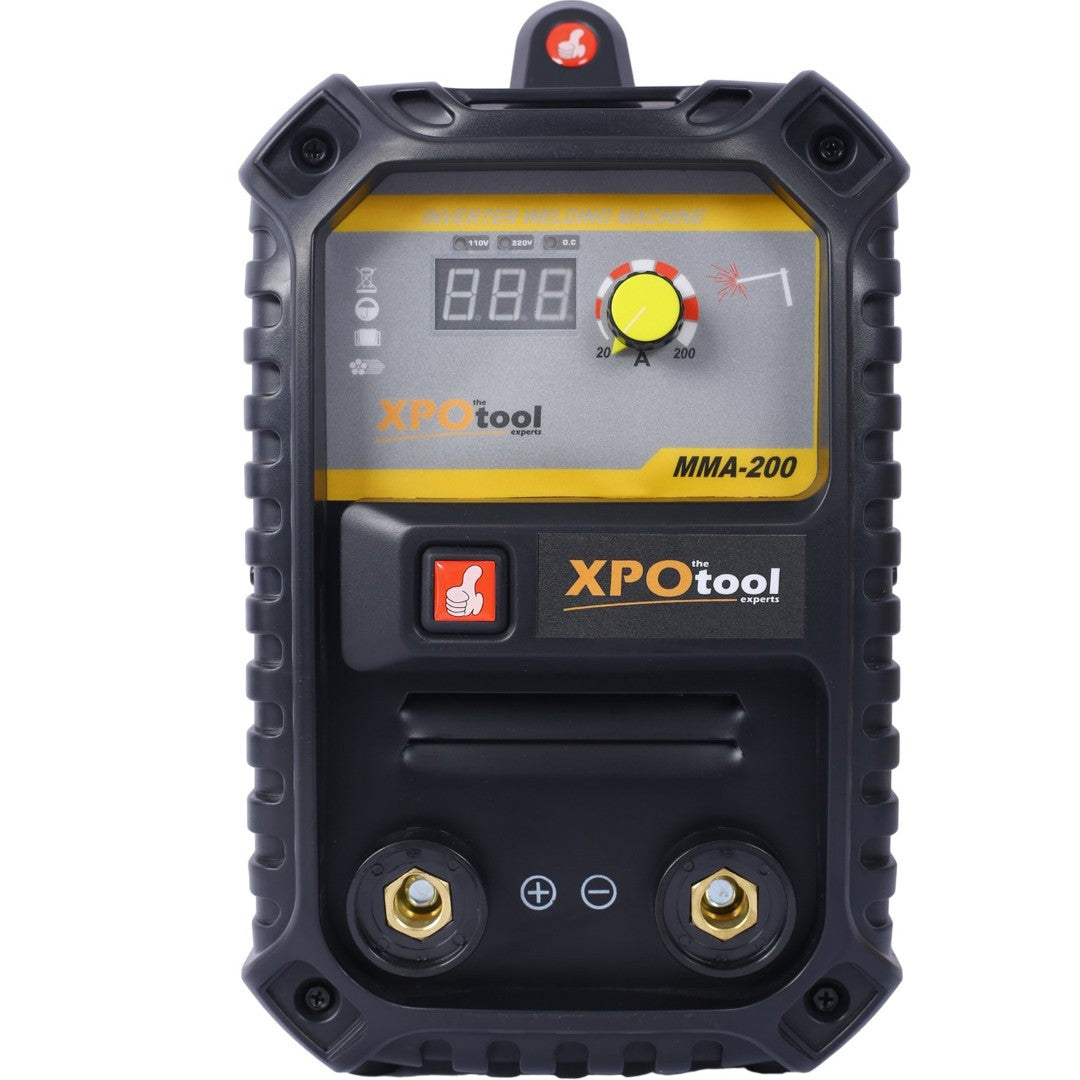

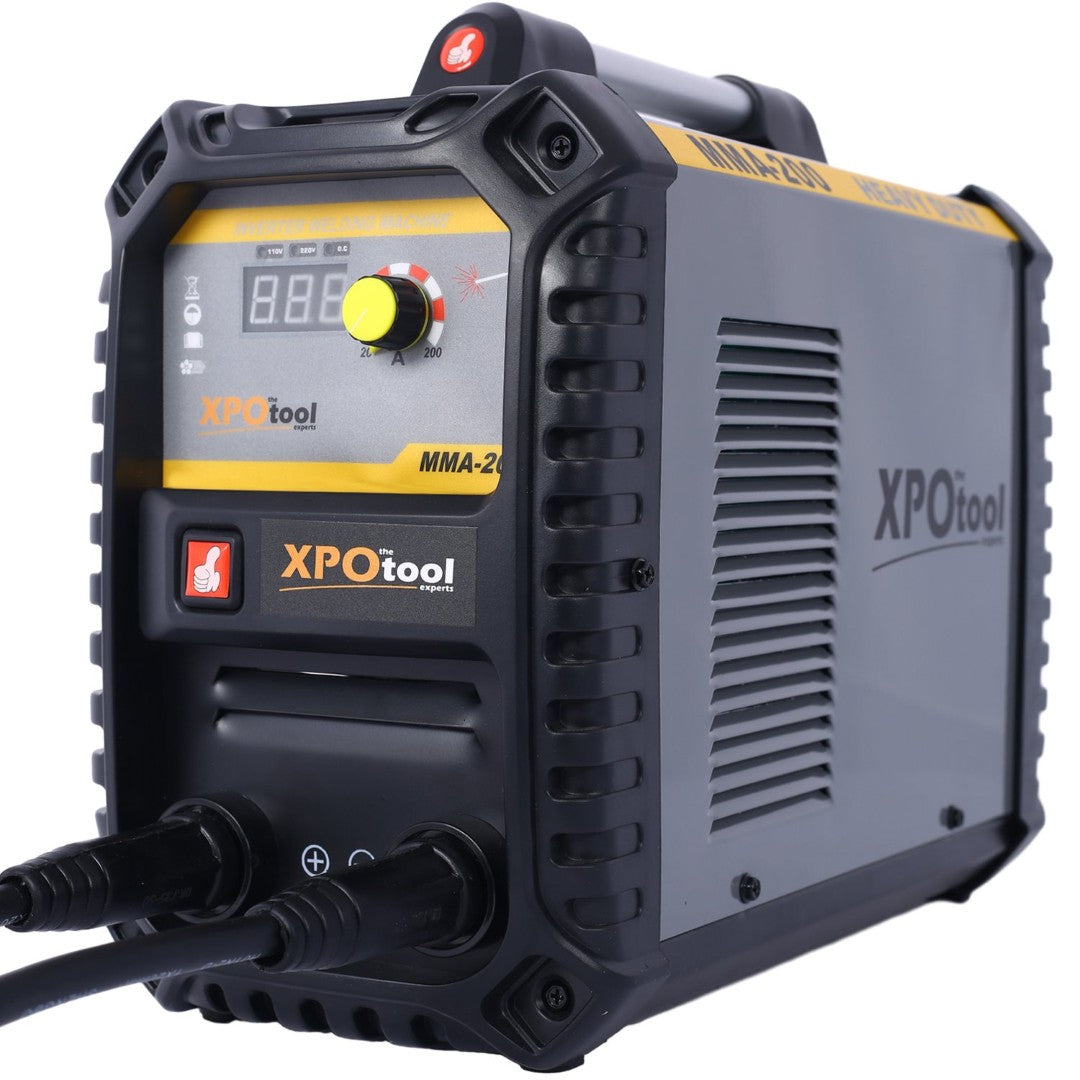

• Digital LCD display with hot start, anti-stick, over-heat, over-current, and over-load protection built in — rated IP21S for basic moisture resistance
• Operates reliably in temperatures as low as -15°C, supporting consecutive welding of up to 10 electrodes without thermal shutdown under normal conditions

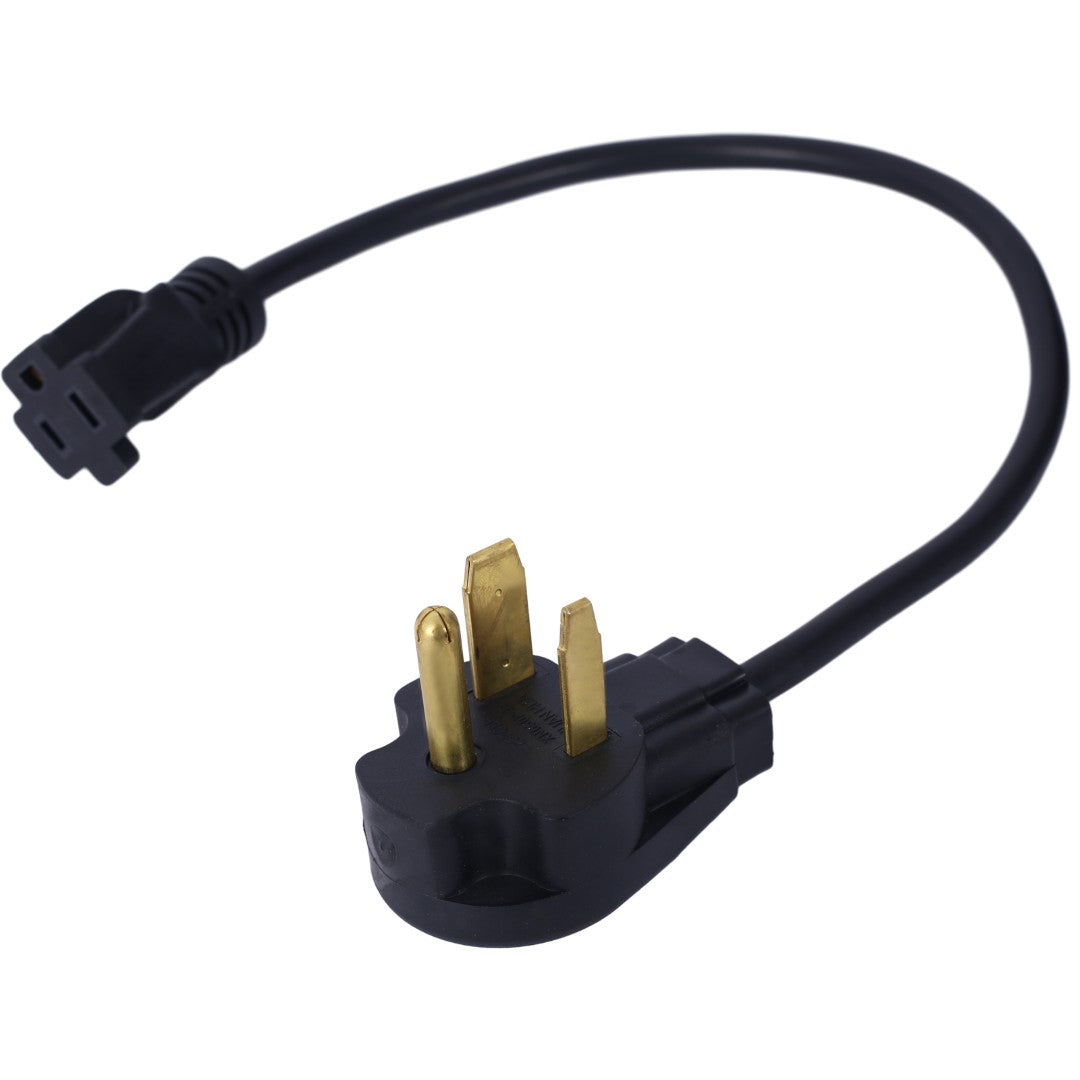

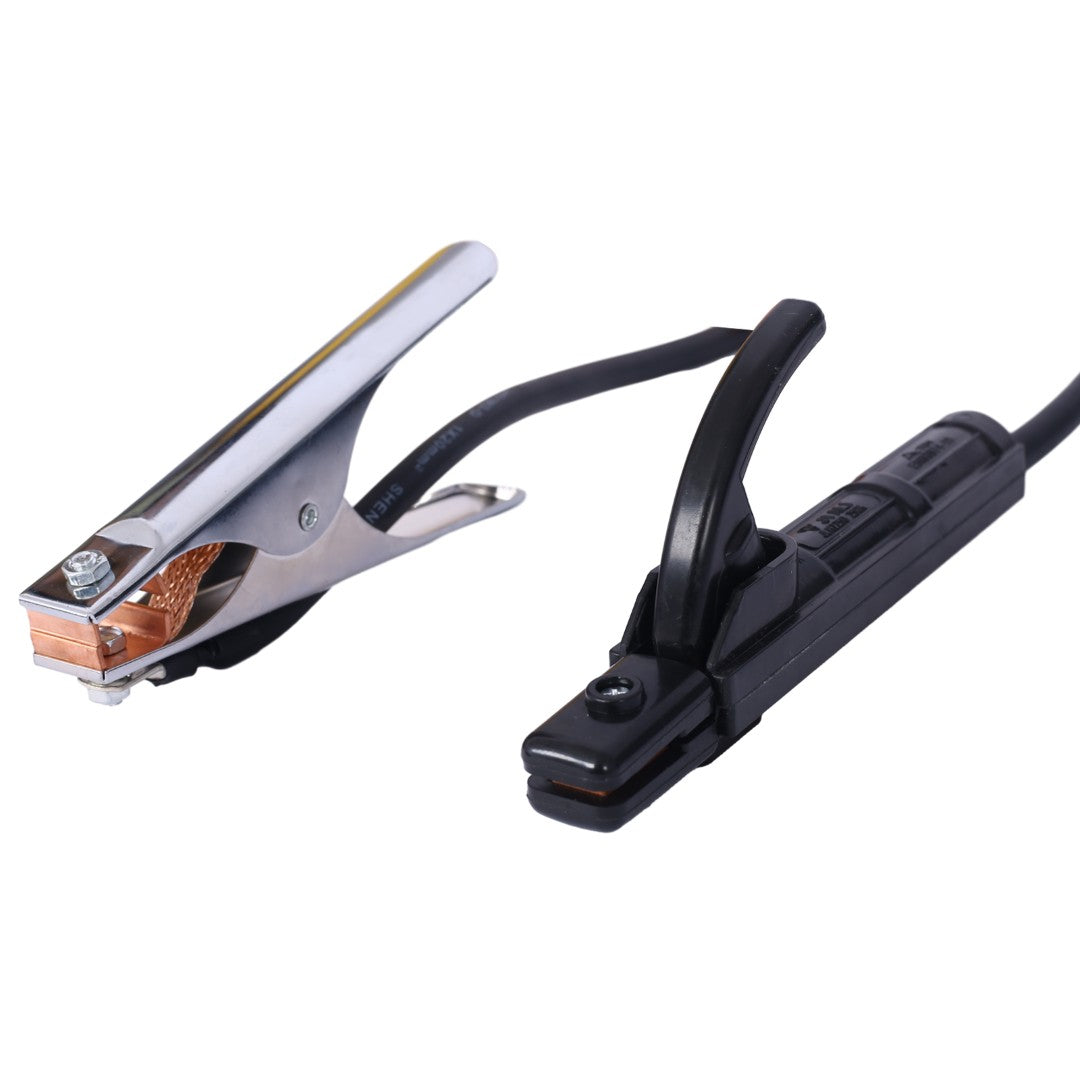

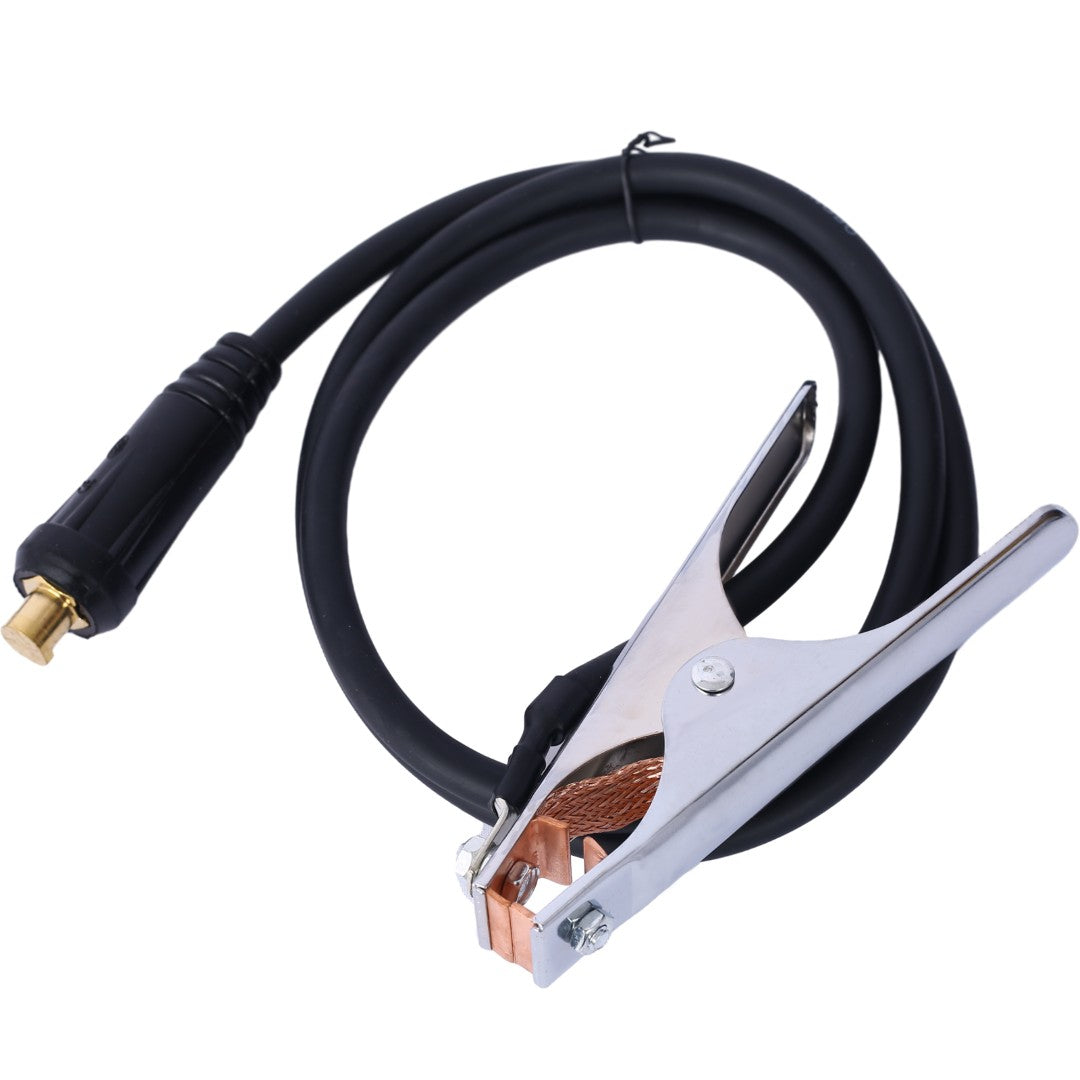

• Includes 500A electrode holder assembly with 2-meter TUV-rated H01N2-D 120mm² welding lead, 500A work clamp with 1.5-meter ground wire, and UL-listed 110/220V conversion plug with 14AWG power cord

Features

• Advanced Technology: It can easily weld normal rods below 5/32 and features high duty cycle capabilities, allowing for the consecutive welding of 10 electrodes without protection. Additionally, it can operate normally in temperatures as low as minus 15 degrees, ensuring reliable performance.

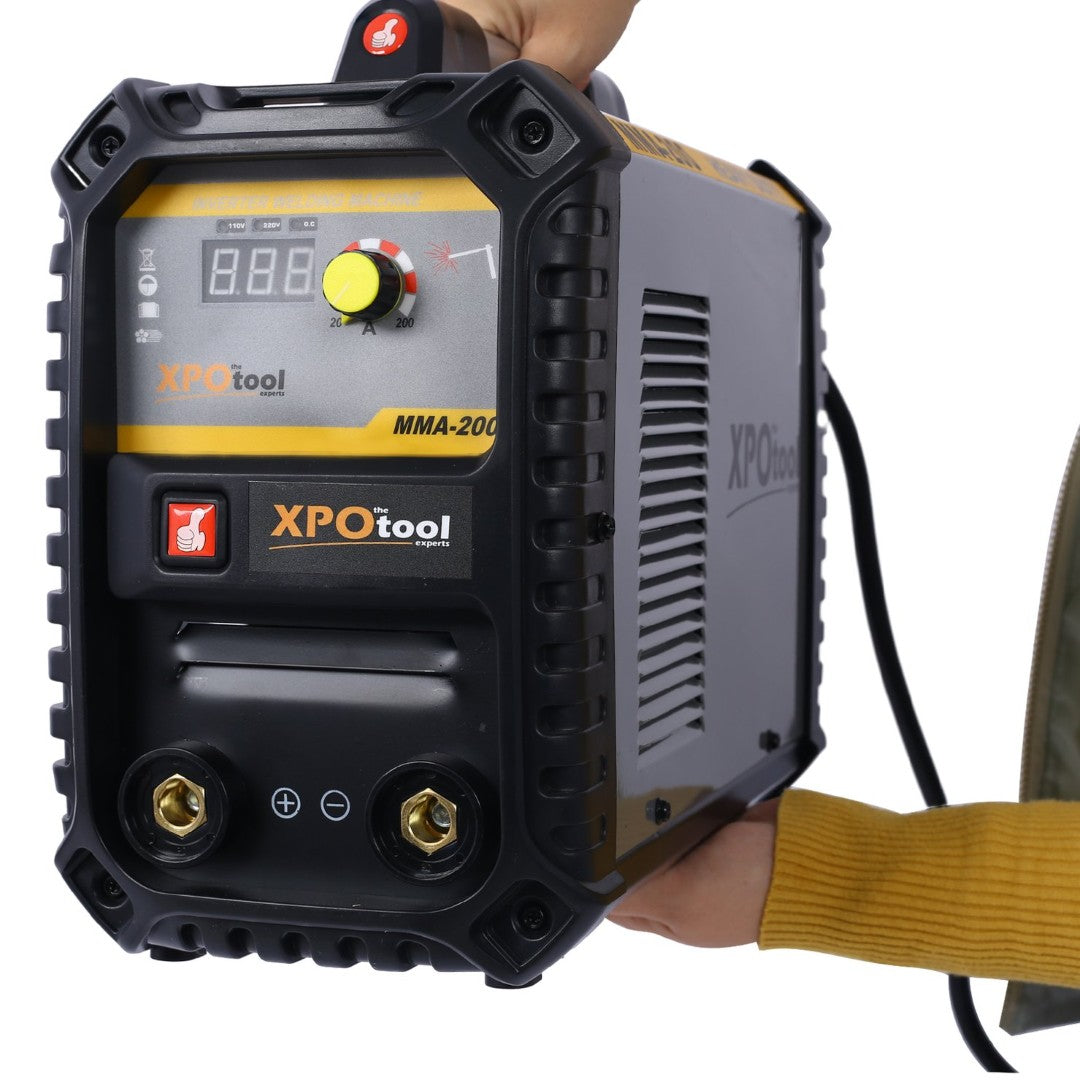

• Safety Guarantee & Portable Design: With comprehensive safety features including over-heating, over-current, and over-loading protection, this welder ensures a secure welding experience while maintaining high-quality performance. Its portable design, equipped with an easy carrying handle, makes it convenient for transfer and storage, enabling usage in various locations.
• Best Choice for Beginners: Ideal for welding with E6011, E6013, E6014, and E7018 electrodes, this welder's digital unitary design automatically matches electrode sizes and current, making it suitable for beginners. The seamless welding process produces beautiful results, even without extensive welding experience.
• Dual-Voltage & High-Quality Accessories: The 20A-200A current stepless adjustment and 90V-260V wide-voltage design make this welder adaptable to various voltage fluctuations. Its 110/220V dual-voltage
• automatic conversion further enhances its usability. The welder comes with a range of high-quality accessories, including a 500A Electrode Holder Assembly, a 500A Work Clamp Assembly

Additional Features

• Assembled Length(inch): 16.5
• Assembled Width(inch): 7
• Assembled Height(inch): 12.5
• Product weight(pound): 17.6
• Main Color: Grey
• Main Material: ABS+Steel(Q235)
• Product Dimensions: 16.5 L x 7 W x 12.5 H
